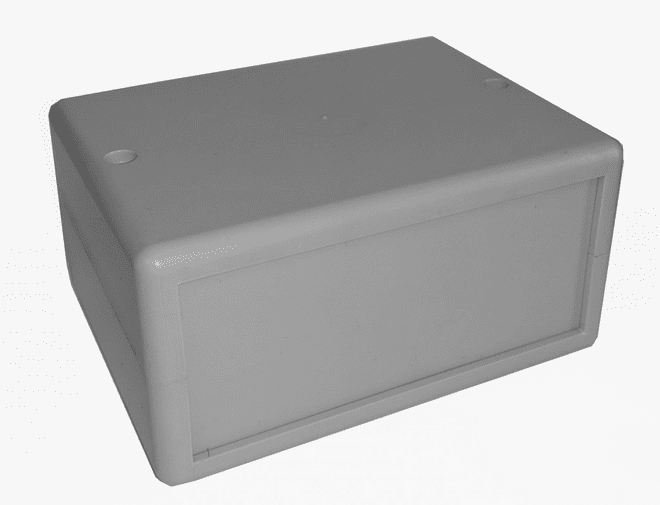

ABS Instrument Case without vents 101mm x 76mm x 51mm (PM3 GREY)

Product code: PM1G
Qty From Qty To Unit Price
1 £3.50
2 24 £3.40
25 49 £3.33
50 99 £3.22
100 249 £3.12
250 499 £3.01
500 £2.80

Product information

The PM3 (Grey) Instrument Case can be used for a variety of applications.

  • Internal size: 96 x 72 x 42mm
  • External size: 101 x 76 x 51mm
  • Screw pillars intrude 6mm x 7mm into box reducing the internal space available
  • End panel size: 94mm x 44mm Plastic end panels (can easily be replaced with metal end plates)
  • Does not have ventilation slots as standard but can be modified easily.
  • 4 mounting bosses (pillars), 4mm high, are provided in both top and bottom faces for PCB fixing.
  • Wall section 3.2mm.
  • Panel thickness 1.6mm

Technical specifications

Brand Terrington Components
Condition New
Product Code PM1G
